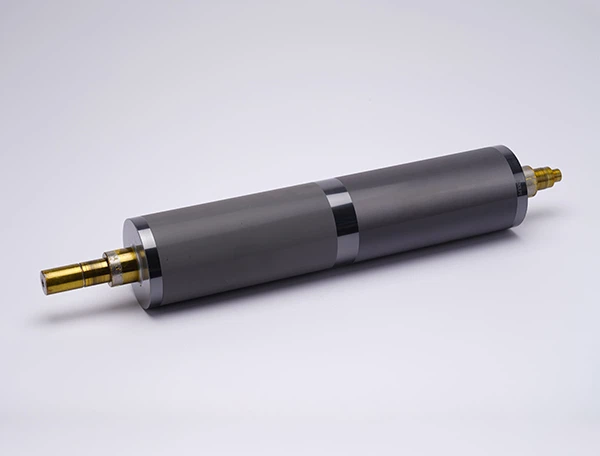

Rol Anilox Keramik

Permukaan mandrel baja cor, aluminium, atau gulungan serat karbon dilapisi lapisan keramik. Setelah selesai pemesinan, permukaan gulungan akan diukir lapisan jaring sel dengan laser sesuai dengan kehalusan pencetakan, ketebalan tinta dan sebagainya.

Kirim permintaan

Deskripsi

perkenalan produk

The surface of cast steel, aluminum, or carbon fiber roll mandrel is coated ceramics layer. After finish machining, the roll surface will be engraved a layer of cell net by laser according to printing fineness, the thickness of ink and so on. Ceramic roll is widely used in printing, plastic, coatings , optics, semiconductor and other fields. Ceramic Anilox Rollers have capillary pores and is hydrophilic, making the ink layer more uniform and fine, which can significantly improve the quality of the print.

Fitur

For some industries where coating is very expensive, although the use of Ceramic Anilox Rollers increases the cost for a while, but in the long run, it seems that the material used will be greatly saved, and the production speed is increased, so the benefits are obvious. It has to be polished surface treatment after laser engraving the mesh, with smooth surface and almost no abrasion to the rubber roller and printing plate.

Keuntungan

1. Keramik kekerasan tinggi

2. Lapisan padat

3. Ketahanan korosi

4. Transfer tinta yang akurat

5. Titik akupuntur sel terdefinisi dengan baik. Dinding sel halus. Transfernya tinggi.

6. Mudah dibersihkan.

Spesifikasi

Jenis sel	segi empat	Sarang madu	Menenun	Spiral
Derajat	45 derajat	60 derajat		45 derajat atau 60 derajat

LPI dan BCM

Model	M1	M2	M3	M4	M5	M6	M7	M8	M9	M10	M11	M12	M13	M14	M15	M16	M17	M18	M19
LPC	40	50	60	70	80	100	120	140	160	180	200	220	240	260	280	320	400	470	550
LPI	100	120	150	180	200	250	300	350	400	450	500	550	600	650	700	800	1000	1200	1400
BCM	20	16	13	10	9	8	6	6	5	5	4	4	3	3	3	2.5	2	1.5	1
